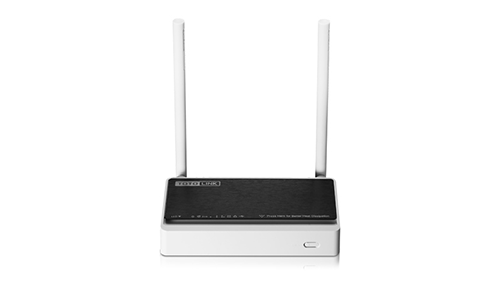

TOTOLINK G300R IP04256 300Mbps 3G/4G Wireless N Router

The TOTOLINK G300R is a 3G/4G wireless N router with 300Mbps data rate. It has five 10/100Mbps LAN ports and one 10/100Mbps WAN port. The router supports both 3G mobile connection and WAN connection. It also supports DHCP Client, PPPoE, Static IP, PPTP, and L2TP broadband functions. The router provides various security features, including 64/128-bit WEP, WPA, WPA2, and WPA/WPA2 with TKIP and AES encryption. It allows easy and fast connection to a secure network using WPS. The router also supports IP/Port, MAC, URL, and Port Forwarding filtering. The router has a repeater function that expands the wireless coverage and allows more terminals to access the internet. It also supports QoS for bandwidth control based on IP/MAC. Multiple APs allow users to add other two SSIDs for different needs. The router has a VLAN function for IPTV or other internet services. It also has an SSH Server for secure remote login. The router supports TR-069 protocol for remote centralized management. The easy setup simplifies the basic settings of the router. The hardware features include four 10/100Mbps LAN ports, one 10/100Mbps WAN port, one USB port, a 9V DC/0.8A power supply, a reset/WPS button, and power on/off LED indicators. The dimensions of the router are 5.8 x 3.0 x 1.0 inches (147.5 x 76 x 25 mm). The wireless features include IEEE 802.11n, IEEE 802.11g, and IEEE 802.11b standards. The data rate ranges from 802.11n (up to 300Mbps), 802.11g (up to 54Mbps), and 802.11b (up to 11Mbps). The wireless security includes 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK with TKIP/AES encryption. The reception sensitivity ranges from 270 MHz (up to -61 dBm), 135 MHz (up to -65 dBm), 54 MHz (up to -68 dBm), 11 MHz (up to -85 dBm), 6 MHz (up to -88 dBm), and 1 MHz (up to -90 dBm). The software features include operation modes such as wireless ISP client, router, wireless client, repeater (range extender), and router bridge with AP client. The WAN type supports USB 3G, DHCP, static IP, PPPoE (dual access), PPTP (dual access), and L2TP (dual access). The wireless functions include multiple SSIDs, MAC authentication, universal repeater, WDS, WPS, and IPTV schedule reboot schedule. The firewall supports MAC filtering, IP filtering, port filtering, and URL filtering. The management features include QoS, DDNS, WMM, access control, etc. The package contents include the G300R wireless router, power adapter, Ethernet cable, quick installation guide, and various environmental requirements such as operating temperature (0-40 Celsius), storage temperature (-40-70 Celsius), operating humidity (10%-90% non-condensing), and storage humidity (5%-90% non-condensing).
